12.1 "BOE EV121WXM-N12 LCD Module

Min. Amri:1 Piece/Pieces

Sifa za Bidhaa
Ufungaji & Utoaji
Other information

Sifa za Bidhaa

Mfano wa Mfano.: EV121WXM-N12

Ufungaji & Utoaji

Kuuza Vitengo:

Piece/Pieces

Utangulizi wa bidhaa

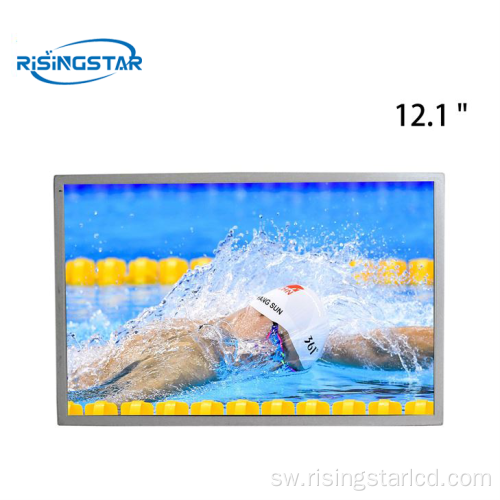

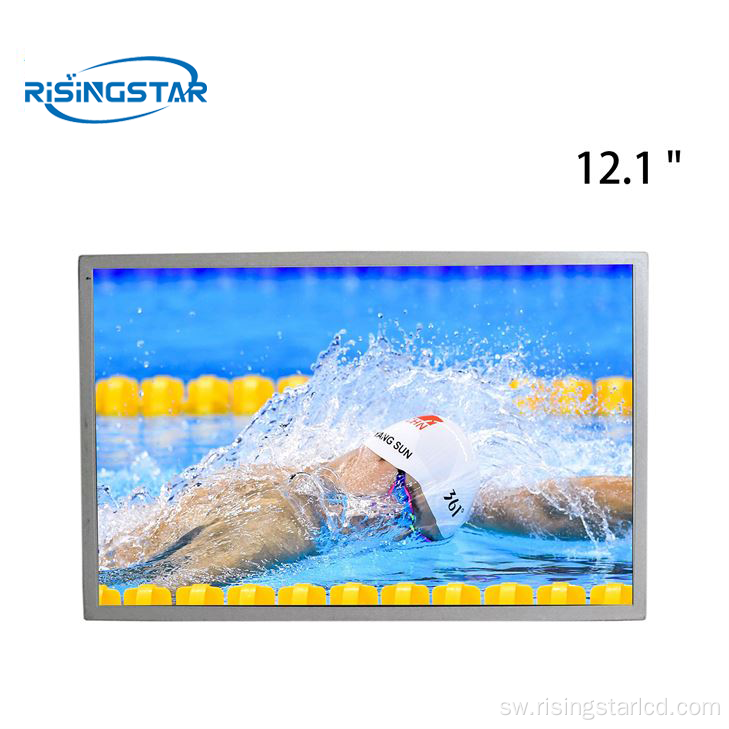

12.1 "BOE EV121WXM-N12 Mwangaza 500Nits Jua linaloweza kusomeka TFT LCD Module.

EV121WXM-N12 ni bidhaa ya moduli ya kioevu ya inchi 12.1 iliyozinduliwa na Boe Technology Group Co, Ltd. (BOE) Kutumia teknolojia ya A-SI TFT-LCD. Imewekwa na Wled Backlight, pamoja na Hifadhi ya Backlight ya Dereva ya LED, hakuna mguso. Kwa taa za nyuma, bidhaa hii hutumia chanzo cha taa ya pembeni ya 12S4p upande (chini) na maisha ya masaa 50k, pamoja na dereva wa LED. Kiwango chake cha kawaida cha kuburudisha wima FV ni 60Hz.

brand	BOE	Model name	EV121WXM-N12
size	12.1 inch	Screen type	a-Si TFT-LCD,LCD module
resolution ratio	1280(RGB)×800 [WXGA] 124PPI	Pixel configuration	RGB vertical bar
Display Area	261.12 × 163.2 mm (H×V)	Surface treatment	Fog surface,(Haze 25%)
Visual size	264.12 × 166.2 mm (H×V)	Contrast Ratio	1200:1 (Typ.) (TM)
Brightness(cd/m²)	500 cd/m² (Typ.)or customized	Outline dimension	277.7×180.6×9.2mm(H×V×D)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Signal interface	LVDS (1 ch, 6/8-bit) , erminal, 20 pins
work environment	Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C
