Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Aina ya malipo:T/T,D/P,Paypal
Incoterm:FOB,CFR,CIF,EXW
Min. Amri:1 Piece/Pieces
Usafiri:Ocean,Land,Air,Express
Brand: Risinglcd
Usafiri: Ocean,Land,Air,Express
Aina ya malipo: T/T,D/P,Paypal
Incoterm: FOB,CFR,CIF,EXW
21.5 inch dled onyesha lcd skrini, mwangaza wa juu unaweza kufikia 2500 nits kwa nje iliyotumiwa.New Sinema 21.5 inch dled LCD skrini na muundo wa aloi ya alumini, utaftaji wa joto zaidi kuliko muundo mwingine. Skrini inayoweza kusomeka ya LCD ya jua, na sensor nyepesi inaweza kurekebisha mwangaza kati ya mchana na usiku. 21.5 inch onyesha skrini ya LCD na interface ya LVDS.30pin.The Screen Voltage ni 5.0V (typ.)
Makala:
1. Mwangaza mkubwa na 2500 nits
2. muundo wa muundo wa aluminium;
3. Matrix LED Backlight Design;
4, moja kwa moja kufifia bodi ya dereva ya nyuma.
5.Kuondoa joto la joto na matumizi ya nguvu ya chini
| 21.5 inch DLED Lcd Module Product Parameter | |||
|
|
specification | Unit | Remarks |
| size | 21.5" |
|
|
| Brightness | 2000 | nits |
|
| Active Area | 476.064(H)*267.786(V) | mm |
|

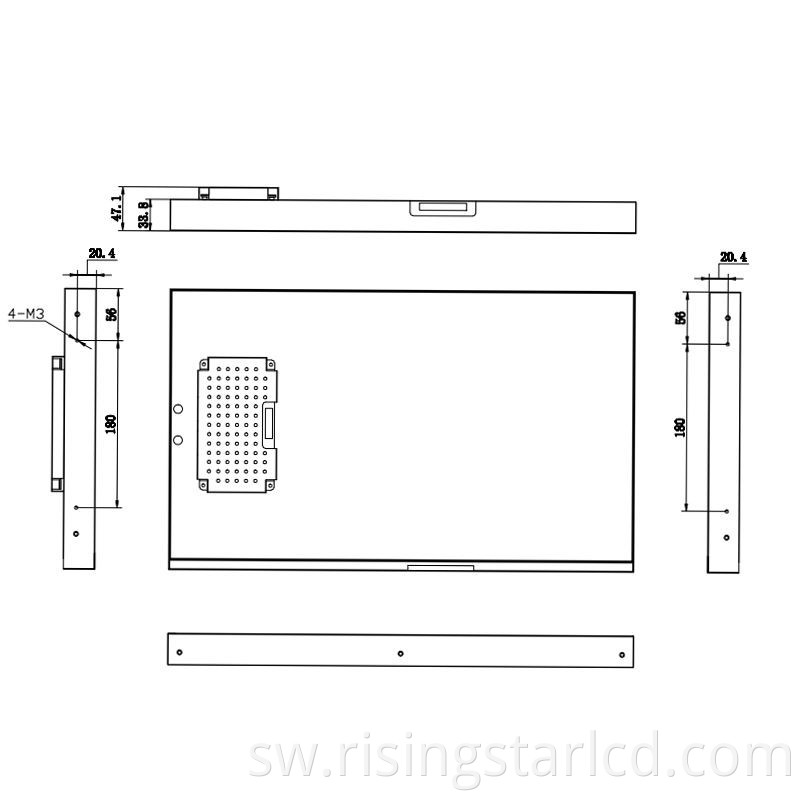

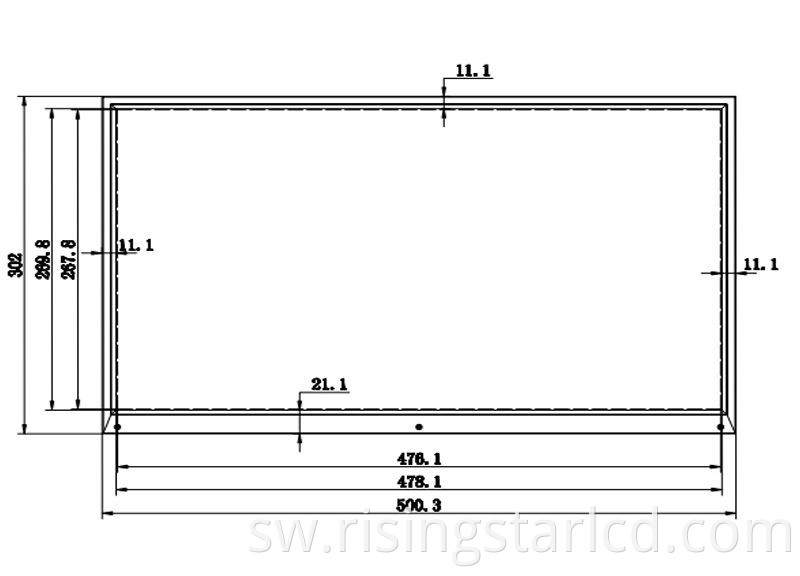

| Dimensional outline | 500.3(H)*302(V)*33.8(D) | mm | detail refer to drawing |
| Number of pixels | 1920*1080 |
|
|
| Type | TFT-LCD |
|
|
| Pixels Pitch | 0.24795×0.24795 | mm |
|
| Display color | 16.7M | colors |
|
| display mode | Normally black |
|
|
| Constrast Ratio | 1000:1 |
|
|
| View Angle | 89/89/89/89(Typ)(CR≥10) |
|
|
| Weight | 2.8 | kgs | Estimated |
| Interface type | LVDS (2ch,8-bit),30 pin |
|
|
| Surface treatment | Haze 25%,3H |
|
|
| Backlight | DLED |
|
|
| Working temperature | 0℃ -- 50℃ |
|
|
Vitambulisho vya Moto: 21.5 inchi dled kuonyesha LCD Screen, Uchina, kiwanda, bei rahisi, bei, umeboreshwa, nukuu, windows inayowakabili LCD, 2000Nits LCD Maonyesho, skrini za kuonyesha LCD, 700 Nits LCD Display, 21 5 Skrini za Kuonyesha, Paneli ya Matangazo ya LCD, 2000Nits skrini
